Step 1: Load MR images and register ZFrame fiducials

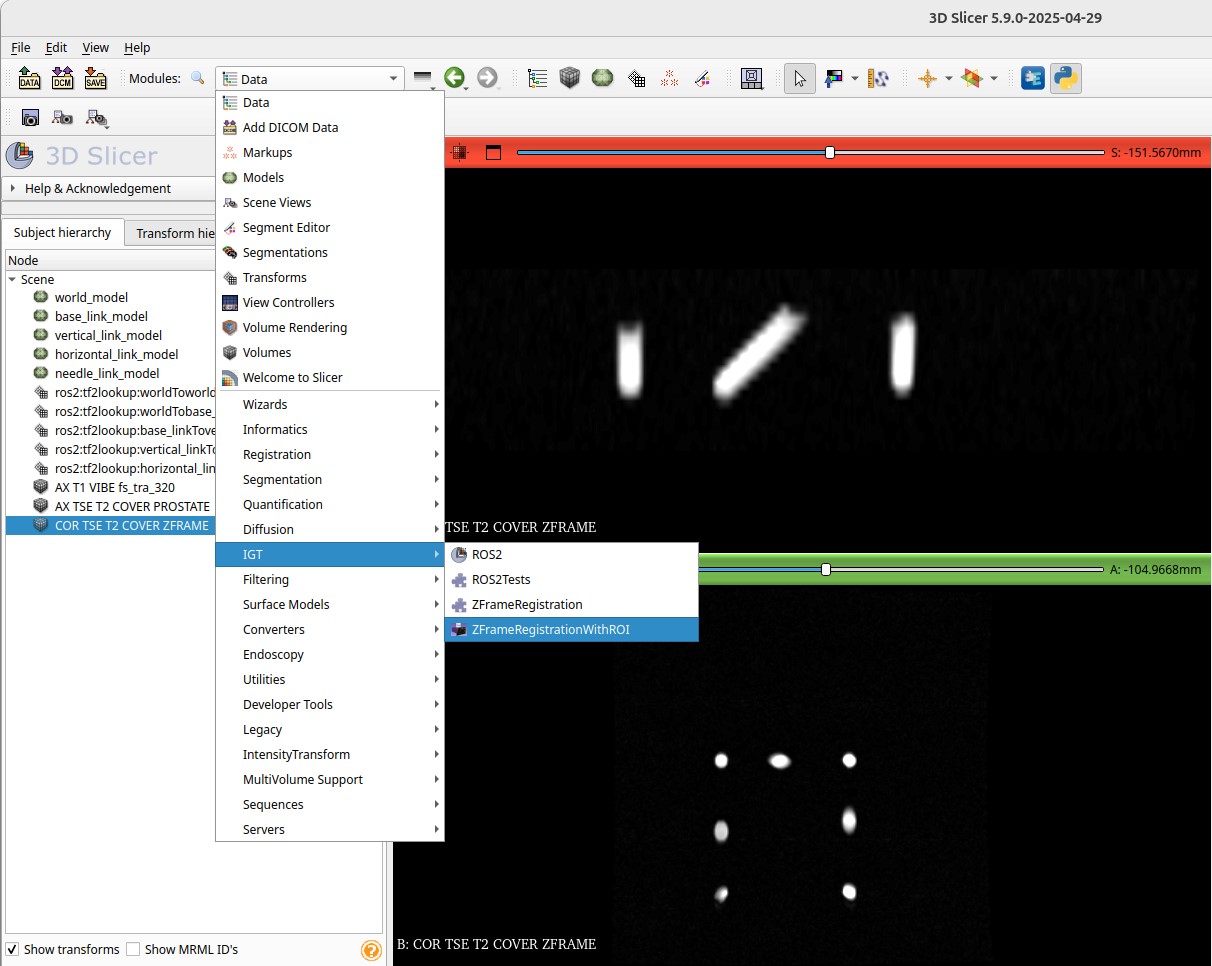

First, load MR images in 3DSlicer (drag the provided files and drop at the 3D Slicer interface). Then open “ZFrameRegistrationWithROI” module

ZFrameRegistrationWithROI module

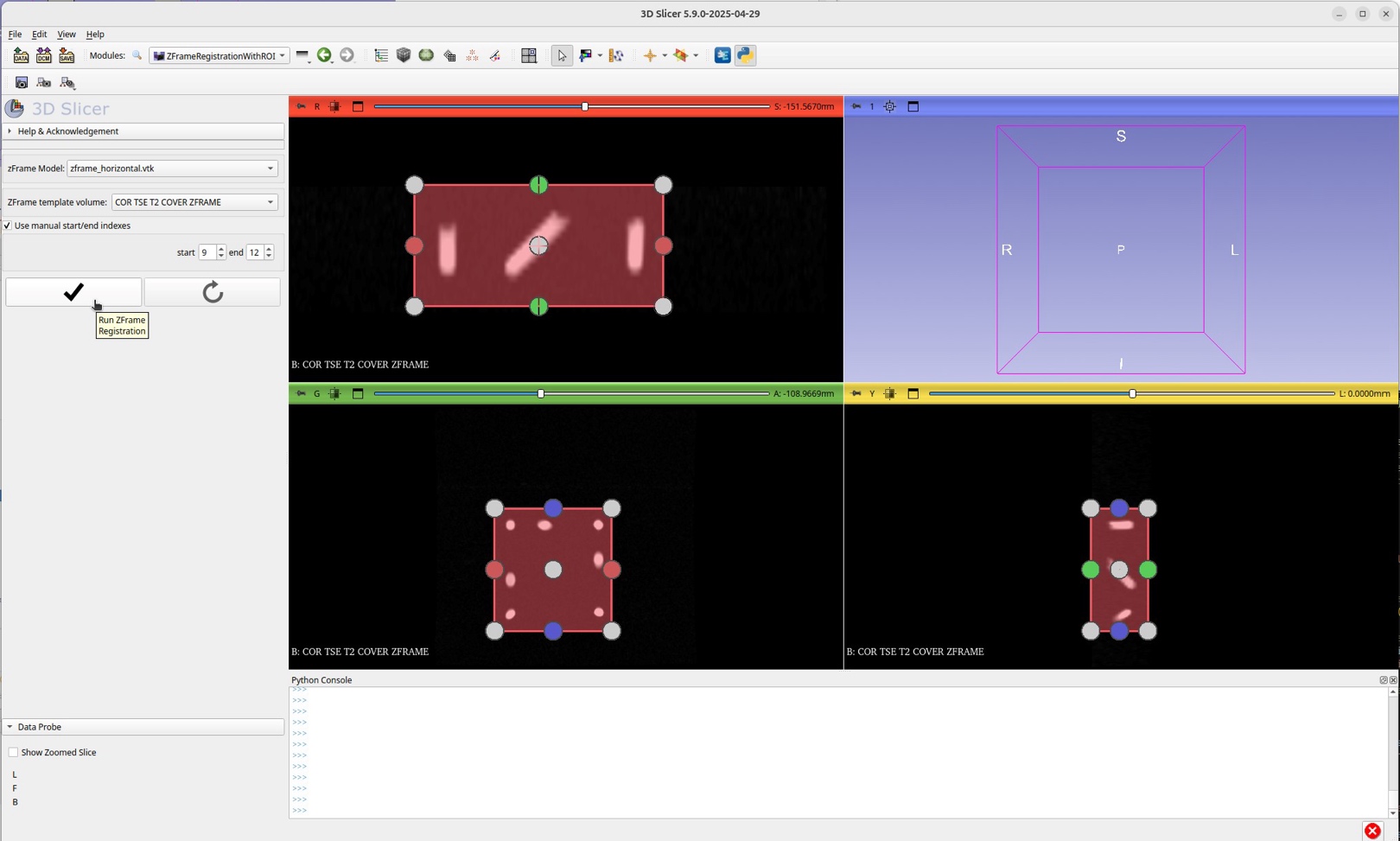

To register the fiducial marker model to the MR image:

  • Select the horizontal ZFrame model
  • Select the “COR TSE T2 COVER ZFrame” volume
  • Select index of slices 9 to 12
  • Define the ROI in the coronal view (green viewer) that appropriately covers the fiducials
  • Click the ✓ button

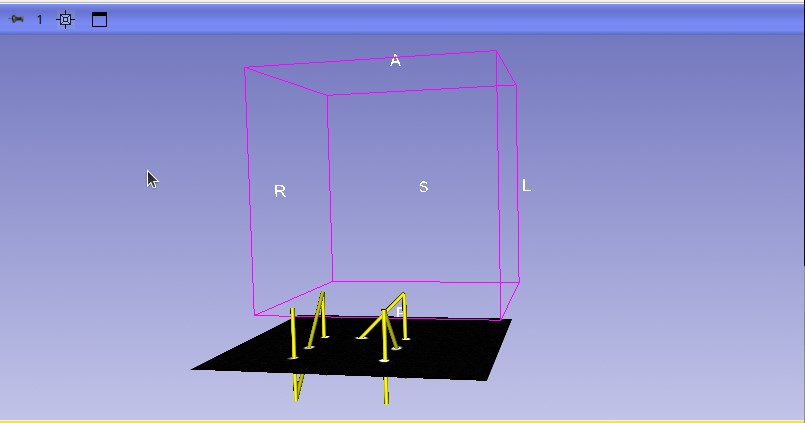

ZFrame registration

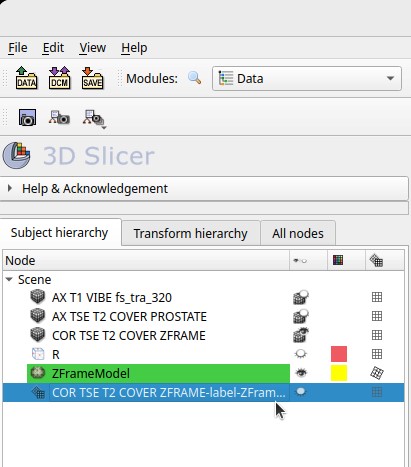

Observe the resultant Linear Transform node that was created to represent the transform from ZFrame to Scanner coordinates:

Transform node Transform coordinates
